Description
Part No. | Thread Size,UNC-2A | Shank Length (inches) | I.D. Eye(inches) | O.D. Eye(inches) | Overall Length (inches) | Net Weight (lbs.) | Working Load Limit (lbs.) |
|---|---|---|---|---|---|---|---|
| 88708 | 1/4 - 20 | 1 | 3/4 | 1-3/16 | 2-3/8 | 0.04 | 650 |
| 88710 | 5/16 - 18 | 1-1/8 | 7/8 | 1-7/16 | 2-13/16 | 0.09 | 1,200 |
| 88712 | 3/8 - 16 | 1-1/4 | 1 | 1-11/16 | 3-9/32 | 0.17 | 1,550 |
| 88714 | 7/16 -14 | 1-3/8 | 1-1/16 | 1-13/16 | 3-9/16 | 0.24 | 2,000 |
| 88716 | 1/2 - 13 | 1-1/2 | 1-3/16 | 2-1/8 | 3-31/32 | 0.38 | 2,600 |
| 88718 | 9/16 - 12 | 1-5/8 | 1-1/4 | 2-5/16 | 4--1/2 | 0.51 | 3,200 |
| 88720 | 5/8 - 11 | 1-3/4 | 1-3/8 | 2-9/16 | 4-3/4 | 0.71 | 5,200 |
| 88724 | 3/4 - 10 | 2 | 1-1/2 | 2-13/16 | 5-1/4 | 0.99 | 7,200 |
| 88728 | 7/8 - 9 | 2-1/4 | 1-11/16 | 3-3/16 | 5-31/32 | 1.48 | 10,600 |

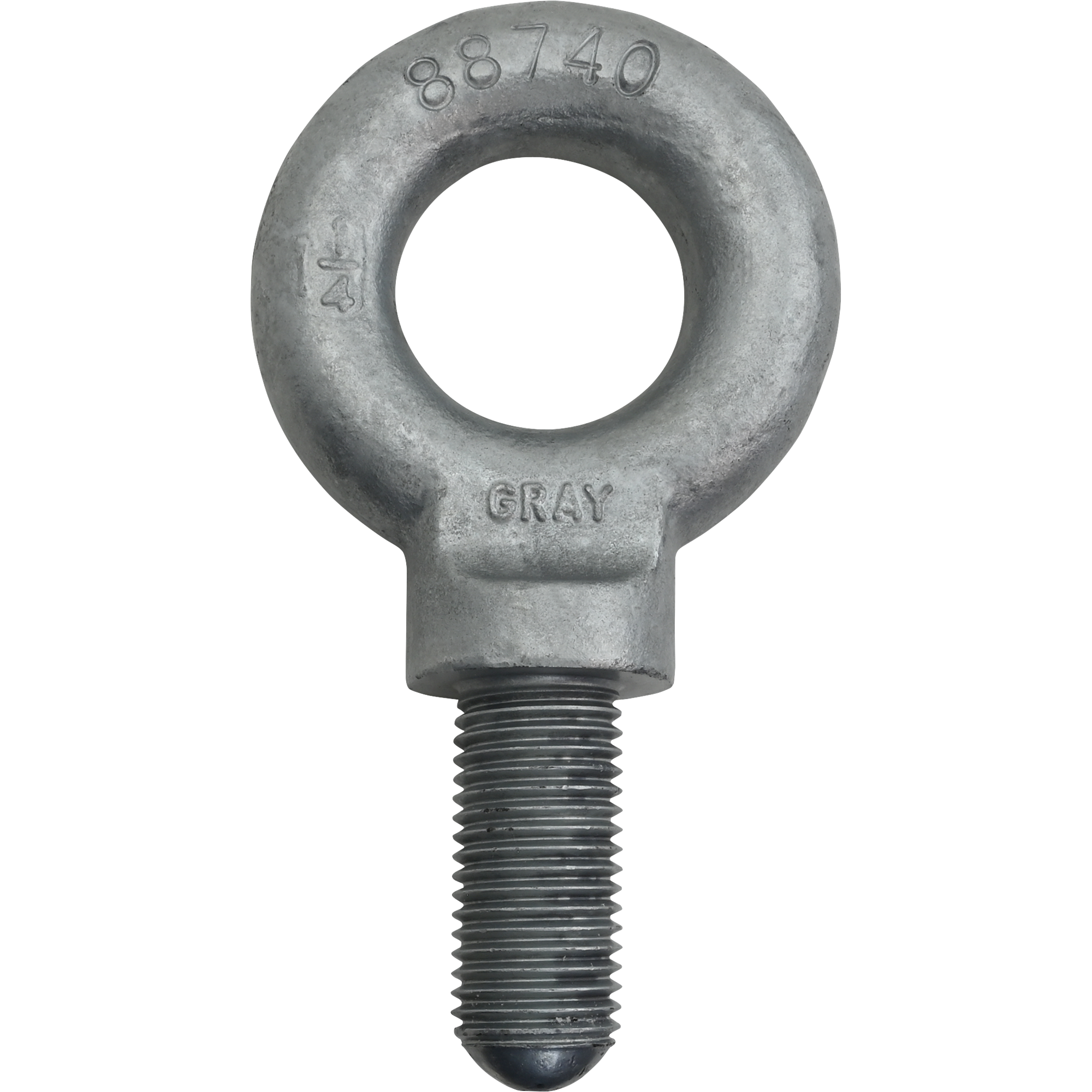

| 88740 | 1-1/4 - 7 | 3 | 2-3/16 | 4-7/16 | 8-7/32 | 4.40 | 21,000 |
- Forged from bar quality fine grain C1030 / C1035 steel bar.
- Proof-tested in accordance with ASTM A489 and Federal Spec. ANSI B18.15.
Safety Warning: Load should never be applied at more than a 45 degree angle from the bolt centerline.
Safety Warning: The rated capacity is reduced to 25% when the load is applied at a 45 degree angle to the eyebolt centerline.
